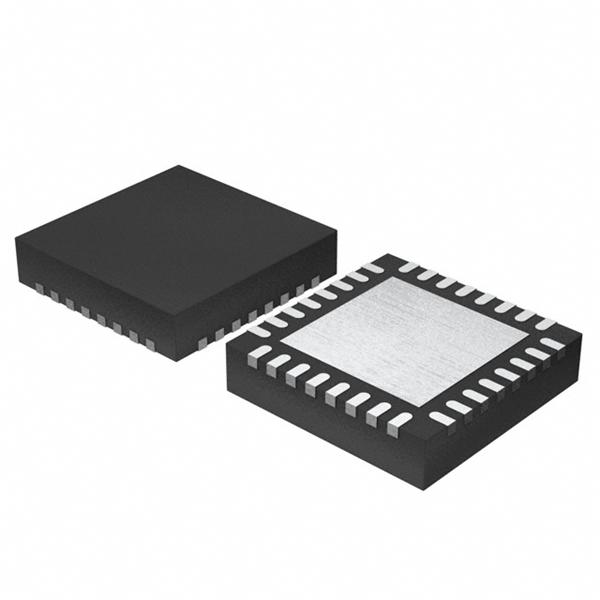

| Package / Case | VQFN EP |
| Surface Mount | YES |
| Number of Pins | 32 |
| Weight | 72.206235mg |
| Packaging | Tape & Reel (TR) |
| JESD-609 Code | e4 |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| Number of Terminations | 32 |
| ECCN Code | EAR99 |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Terminal Position | QUAD |
| Peak Reflow Temperature (Cel) | 260 |
| Number of Functions | 1 |
| Supply Voltage | 1.8V |
| Terminal Pitch | 0.5mm |
| Pin Count | 32 |
| Operating Supply Voltage | 1.95V |
| Temperature Grade | INDUSTRIAL |
| Interface | 2-Wire, I2C, Serial |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.1V |
| Resolution | 3 B |
| Sampling Rate | 96 ksps |
| Power Consumption | 14mW |
| Telecom IC Type | TELECOM CIRCUIT |
| Signal to Noise Ratio (SNR) | 92 dB |
| Number of D/A Converters | 2 |
| Number of Analog Inputs | 6 |
| Length | 5mm |
| Height Seated (Max) | 1mm |
| Width | 5mm |
| Radiation Hardening | No |
| RoHS Status | RoHS Compliant |
| Lead Free | Lead Free |
TLVAIC3104IRHBRG4 Datasheet
