| Mount | Surface Mount |

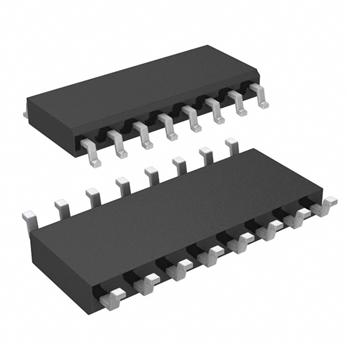

| Package / Case | 16-SOIC (0.154, 3.90mm Width) |
| Operating Temperature | 0°C~70°C |
| Packaging | Tape & Reel (TR) |
| Published | 2004 |
| JESD-609 Code | e3 |
| Pbfree Code | yes |
| Part Status | Obsolete |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Number of Terminations | 16 |
| ECCN Code | EAR99 |
| Type | Controller (PD) |
| Terminal Finish | Matte Tin (Sn) |
| Additional Feature | N |
| Voltage - Supply | 18V~67V |
| Terminal Position | DUAL |
| Terminal Form | GULL WING |
| Peak Reflow Temperature (Cel) | 260 |
| Number of Functions | 1 |
| Base Part Number | MAX5942 |
| Pin Count | 16 |
| Input Voltage-Nom | 48V |
| Number of Channels | 1 |
| Power - Max | 12.95W |
| Current - Supply | 400μA |
| Control Mode | CURRENT-MODE |
| Output Current-Max | 1A |
| Input Voltage (Max) | 67V |
| Control Technique | PULSE WIDTH MODULATION |
| Switcher Configuration | SINGLE |
| Internal Switch(s) | No |
| Standards | 802.3af (PoE) |
| Length | 9.9mm |
| Width | 3.9mm |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-SOIC |
| Package | Tape & Reel (TR) |
| Base Product Number | MAX5942 |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete |
| Operating Temperature | 0°C ~ 70°C |
| Series | - |
| Voltage - Supply | 18V ~ 67V |
| Power - Max | 12.95 W |
| Auxiliary Sense | No |
