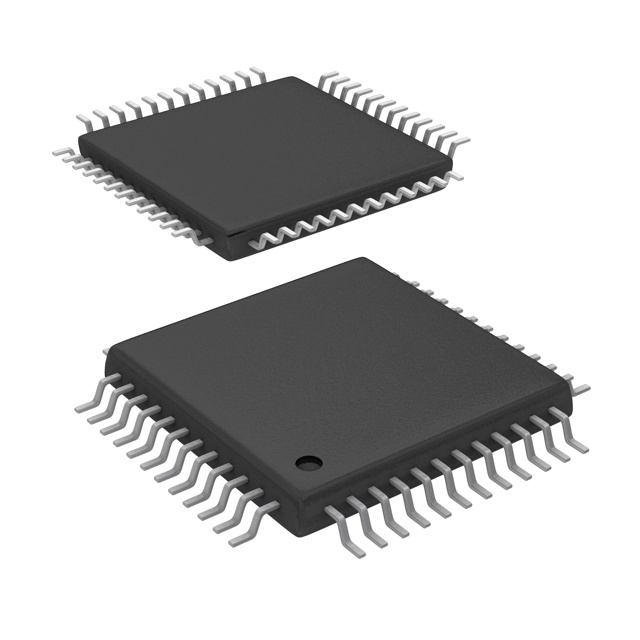

TAS5010IPFBG4 Overview
With Tray, it comes in a case. A Surface Mount mounting type is recommended for this product. In 48-TQFP case, it is embedded. With 2 channels, the device is equipped. You can refer to Audio Signal Processor functions in this part. Automotive Audio, Consumer Audio is one of the possible applications of the device. Votage within 3V~3.6V is supplied. The device operates at a temperature in the range -40°C~85°C TA. On the chip, there are 48 terminations. Using the TAS5010 family as a search term will yield similar parts. The following specifications apply to the device: 96dB. On the chip, 48 pins are accessible. Consumer IC types can be sorted with CONSUMER CIRCUIT. In a 3.6V-volt supply voltage, the chip conducts.
TAS5010IPFBG4 Features
With 48-TQFP channels
operate temperature at the range of -40°C~85°C TA
consumer IC type: CONSUMER CIRCUIT

TAS5010IPFBG4 Applications
There are a lot of Texas Instruments
TAS5010IPFBG4 Audio Special Purpose applications.

Consumer electronics
AV/DVD Receiver, AV Amplifier
Car or Mobile Audio System
Digital Television
Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers

Mounting Type	Surface Mount
Package / Case	48-TQFP
Surface Mount	YES
Number of Pins	48
Weight	139.989945mg
Operating Temperature	-40°C~85°C TA
Packaging	Tray
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	2 (1 Year)
Number of Terminations	48
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Applications	Automotive Audio, Consumer Audio
Voltage - Supply	3V~3.6V
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Terminal Pitch	0.5mm
Base Part Number	TAS5010
Function	Audio Signal Processor
Output Type	PWM
Operating Supply Voltage	3.6V
Number of Channels	2
Interface	DSP, I2S
Output Power	59.4mW
Specifications	96dB
Consumer IC Type	CONSUMER CIRCUIT
Max Supply Voltage (DC)	3.6V
Min Supply Voltage (DC)	3V
Height	1mm
Length	7mm
Width	7mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
