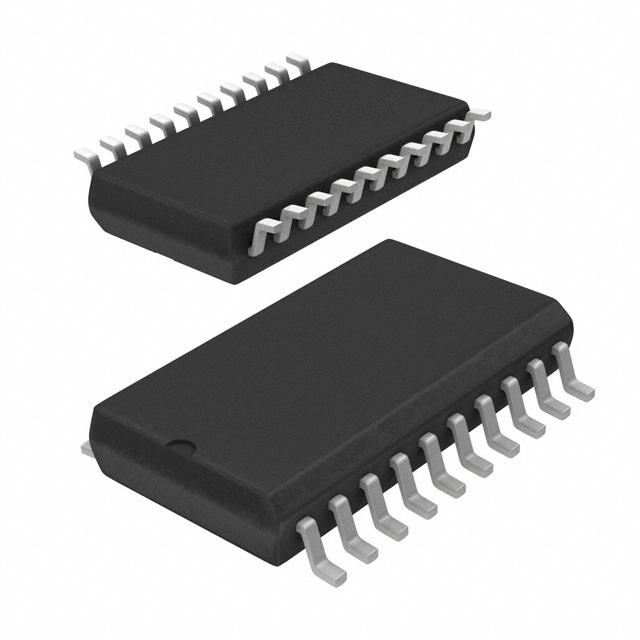

TDA7418TR Overview
It comes in a case with Tape & Reel (TR). It recommended mounting type is Surface Mount. It is embedded in 20-SOIC (0.295, 7.50mm Width) case. The device is with 4 channels. This part includes Audio Signal Processor functions for your reference. The device can be applied in Automotive Audio. It is supplied votage within 8V~10V. This device operates temperature at the range of -40°C~85°C TA. The number of terminations on the chip is 20. Similar parts can be found by searching for the TDA7418 family. There are 20 pins accessible on the chip. CONSUMER CIRCUIT can be used to sort the part's consumer IC type. The minimum supply voltage (Vsup) for this part should not be less than 8V. The maximal supply voltage (Vsup) reaches 10V. It is mounted by Surface Mount. This electrical component belongs to the Automotive, AEC-Q100 series. The chip conducts in a supply voltage of 8.5V. The voltage gain should stay at 15 dB.
TDA7418TR Features
With 20-SOIC (0.295, 7.50mm Width) channels
operate temperature at the range of -40°C~85°C TA
consumer IC type: CONSUMER CIRCUIT

TDA7418TR Applications
There are a lot of STMicroelectronics
TDA7418TR Audio Special Purpose applications.

Mobile computing
Portable electronics
Consumer electronics
AV/DVD Receiver, AV Amplifier
Car or Mobile Audio System
Digital Television
Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703

Lifecycle Status	ACTIVE (Last Updated: 7 months ago)
Factory Lead Time	19 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	20-SOIC (0.295, 7.50mm Width)
Number of Pins	20
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	Automotive, AEC-Q100
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	20
ECCN Code	EAR99
Applications	Automotive Audio
Voltage - Supply	8V~10V
Terminal Position	DUAL
Terminal Form	GULL WING
Terminal Pitch	1.27mm
Base Part Number	TDA7418
Function	Audio Signal Processor
Operating Supply Voltage	8.5V
Supply Voltage-Max (Vsup)	10V
Supply Voltage-Min (Vsup)	8V
Number of Channels	4
Interface	I2C
Nominal Supply Current	25mA
Common Mode Rejection Ratio	40 dB
Input Offset Voltage (Vos)	500μV
Gain	15 dB
Consumer IC Type	CONSUMER CIRCUIT
Length	12.8mm
Height Seated (Max)	2.65mm
Width	7.5mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
Mfr	STMicroelectronics
Product Status	Obsolete
Interface	I²C
Voltage - Supply	8V ~ 10V
Operating Temperature	-40°C ~ 85°C (TA)
Specifications	-
Package / Case	20-SOIC (0.295", 7.50mm Width)
Supplier Device Package	20-SO
