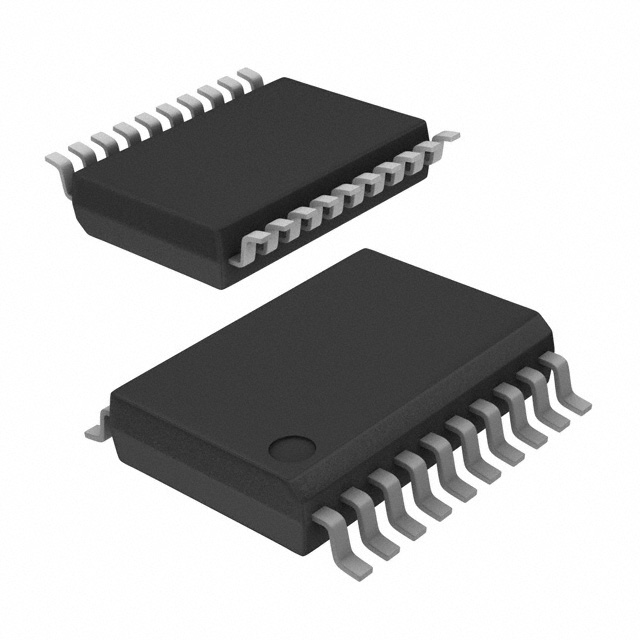

WM8804GEDS/RV Overview
With Tape & Reel (TR), it comes in a case. A Surface Mount mounting type is recommended for this product. In 20-SSOP (0.209, 5.30mm Width) case, it is embedded. With 1 channels, the device is equipped. You can refer to Audio Transceiver functions in this part. Professional Audio is one of the possible applications of the device. Votage within 2.7V~3.6V is supplied. The device operates at a temperature in the range -40°C~85°C TA. On the chip, there are 20 terminations. The following specifications apply to the device: 32kHz ~ 192kHz. On the chip, 20 pins are accessible. Consumer IC types can be sorted with CONSUMER CIRCUIT. This part should have a minimum supply voltage of 2.7V (Vsup). Once 3.6V is reached, the maximal supply voltage (Vsup) is reached.
WM8804GEDS/RV Features
With 20-SSOP (0.209, 5.30mm Width) channels
operate temperature at the range of -40°C~85°C TA
consumer IC type: CONSUMER CIRCUIT

WM8804GEDS/RV Applications
There are a lot of Cirrus Logic Inc.
WM8804GEDS/RV Audio Special Purpose applications.

Consumer electronics
AV/DVD Receiver, AV Amplifier
Car or Mobile Audio System
Digital Television
Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers

Factory Lead Time	15 Weeks
Mounting Type	Surface Mount
Package / Case	20-SSOP (0.209, 5.30mm Width)
Surface Mount	YES
Number of Pins	20
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Published	2007
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	20
Applications	Professional Audio
Voltage - Supply	2.7V~3.6V
Terminal Position	DUAL
Terminal Form	GULL WING
Terminal Pitch	0.65mm
Function	Audio Transceiver
Supply Voltage-Max (Vsup)	3.6V
Supply Voltage-Min (Vsup)	2.7V
Number of Channels	1
Interface	I2S
Logic Function	Transceiver
Specifications	32kHz ~ 192kHz
Consumer IC Type	CONSUMER CIRCUIT
Length	7.2mm
Height Seated (Max)	2mm
Width	5.3mm
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Lead Free	Lead Free
Mfr	Cirrus Logic Inc.
Series	-
Product Status	Last Time Buy
Interface	I²S
Voltage - Supply	2.7V ~ 3.6V
Operating Temperature	-40°C ~ 85°C (TA)
Package / Case	20-SSOP (0.209", 5.30mm Width)
Supplier Device Package	20-SSOP
